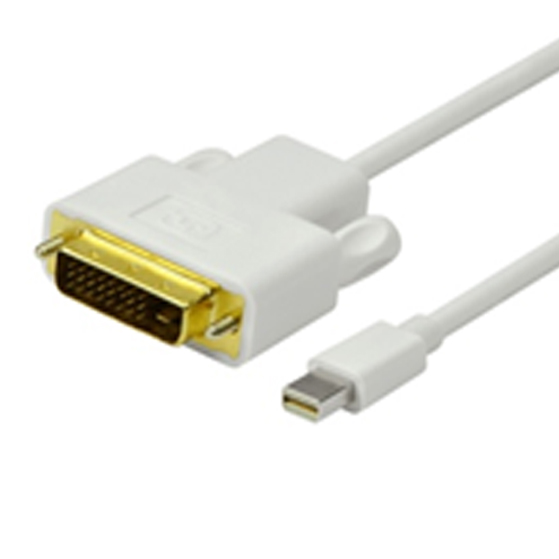

Mini DP(Molding）to DVI(Molding）Cable（Gold Plated）

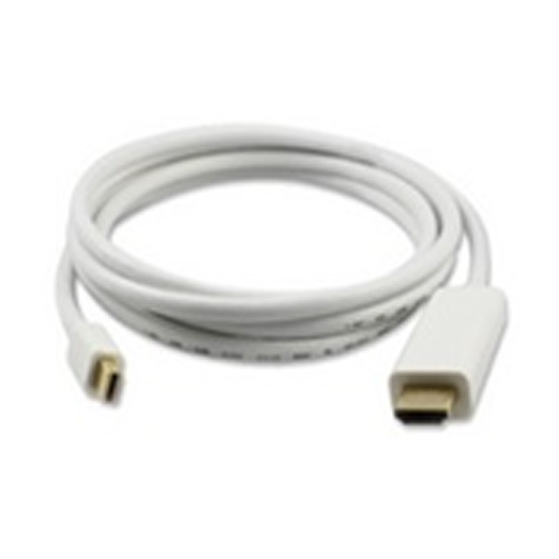

Mini DP (Assembling) to HDMI Cable
Gold Plated
White
Chip:PS8121E
Resolution:1920*1080P

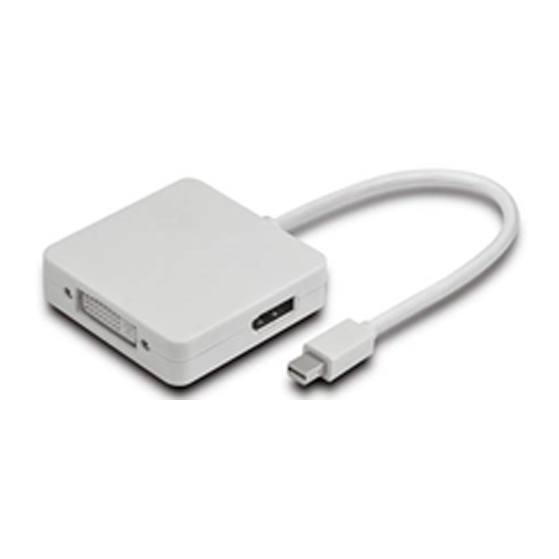

Mini DP (Assembling) to HDMI+DVI(24+5)+DP (Assembling) Adapter Cable
Nickel Plated
Chip:PS8121E

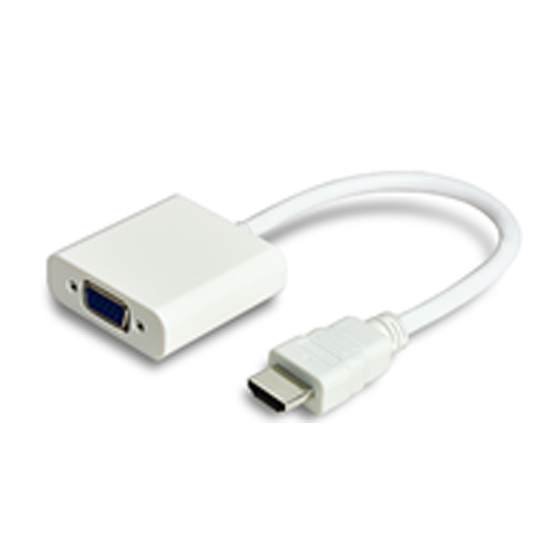

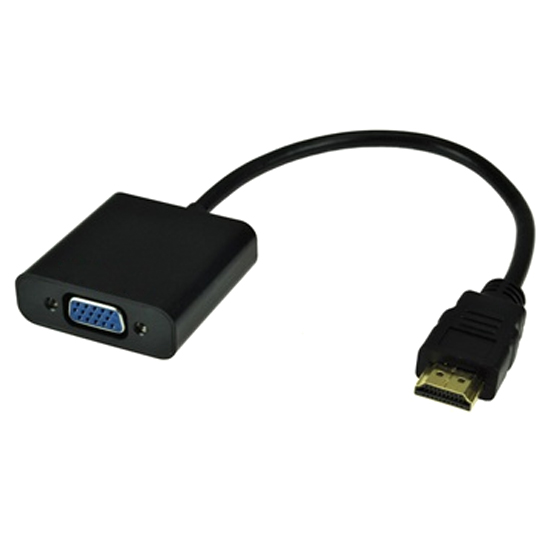

HDMI to VGA Adapter
Input interface: HDMI/Male
Output interface: VGA/Female
Connectting your new NoteBook, Laptop to projector, Display, LCD, TV & Monitor in VGA interface only for big screen viewing
Compliant with HDMI
Support Video output in VGA:1920*1200@60Hz(Max)
Don't support audio output.
Plug-in-out, extral Power,Power from HDMI connectting device.
On-chip HDMI receiver with Equalizer,support 8/10/12bit deep color, up to 2.25GHz data ratio.
ESD 8KV,power consumption:190mA
ROHS, CE compliant

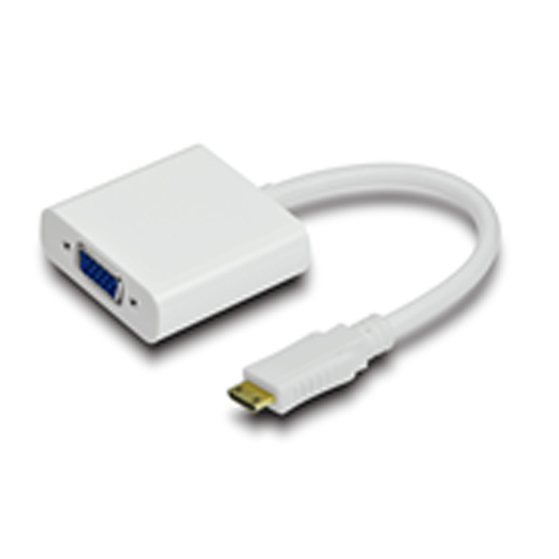

Mini HDMI C Type  to VGA Adapter
Input interface: HDMI/Male
Output interface: VGA/Female
Connectting your new NoteBook, Laptop to projector, Display, LCD, TV & Monitor in VGA interface only for big screen viewing
Compliant with HDMI
Support Video output in VGA:1920*1200@60Hz(Max)
Don't support audio output.
Plug-in-out, extral Power,Power from HDMI connectting device.
On-chip HDMI receiver with Equalizer,support 8/10/12bit deep color, up to 2.25GHz data ratio.
ESD 8KV,power consumption:190mA
ROHS, CE compliant

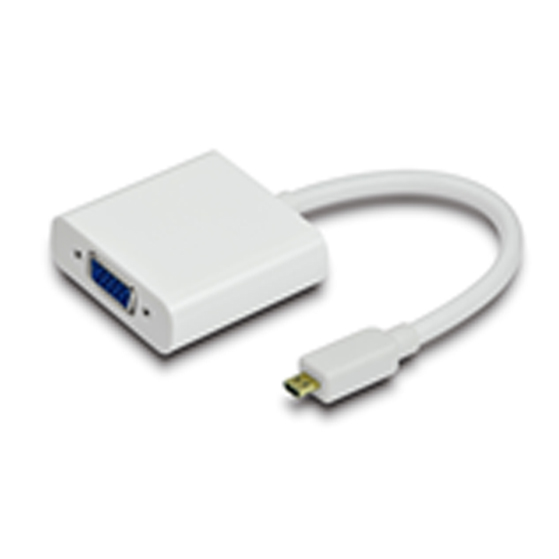

Micro HDMI D Type to VGA Adapter
Input interface: HDMI/Male
Output interface: VGA/Female
Connectting your new NoteBook, Laptop to projector, Display, LCD, TV & Monitor in VGA interface only for big screen viewing
Compliant with HDMI
Support Video output in VGA:1920*1200@60Hz(Max)
Don't support audio output.
Plug-in-out, extral Power,Power from HDMI connectting device.
On-chip HDMI receiver with Equalizer,support 8/10/12bit deep color, up to 2.25GHz data ratio.
ESD 8KV,power consumption:190mA

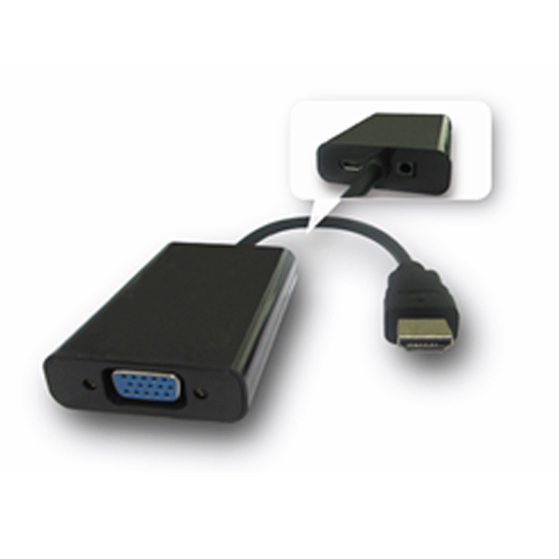

HDMI to VGA+Power+Audio
Nickel Plated
Support 1920*1080P
Chip:CH7101A

Input: HDMI A/C/D(Male)
Output:VGA/Female
Compliant with HDMI
Support pixel clock rate from 25MHZ to 165MHZ
On-chip HDMI receiver with Equalier, support 8/10/12bit deep color ,up to 2.25GHz data ratio
Support Video output in VGA :1920*1200@60Hz (MAX)
Support stereo audio output.
ESD 8kV ,power consumption :190 mA;
Plug-in-out ;power from HDMI (5V)
With additional 5V power charging port to ensure enough power supply & 1080P high resolution.
