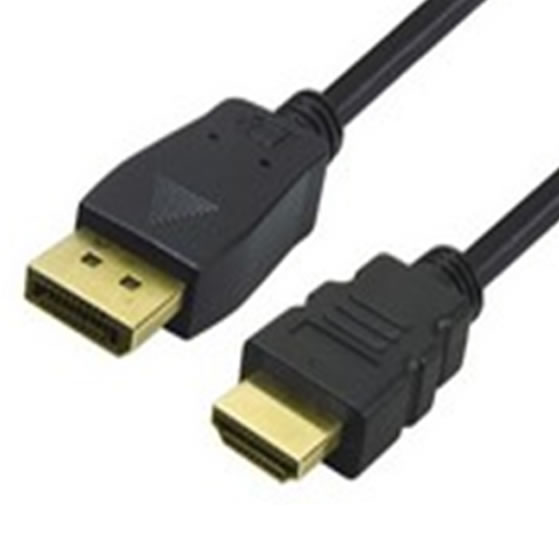

DP (Molding) M to HDMI (Molding) M cable,Black
Chip:PS8121E
Gold Plated

UL20276 30AWG, OD 6.0,Black
DP assmebly type (without DP logo); DVI M Moulding type,Molding with 2 Ferrite Cores,working temperature 0-70degree
Nickle Plated
Chip:PS8121E
support 1920*1200
L=22 inch

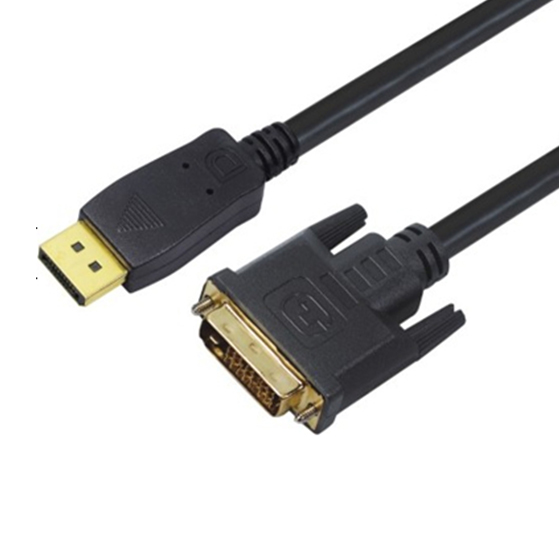

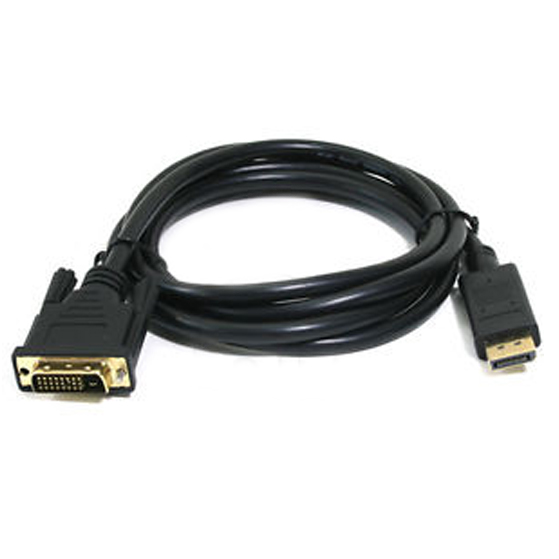

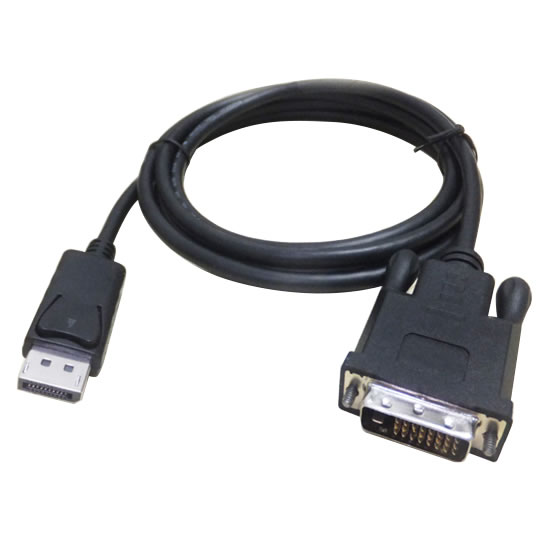

DisplayPort to DVI(24+1),Male Male,6ft/1.83meter

30AWG,OD7.3MM,Jacket PVC Black
DP M (Molding Type,no hook) to DVI(24+1) (Molding Type),Nickel Plated,L=10FT=3050MM
Chip:PS8121E

Compliant with DisplayPort Interoperability specification V1.1a.
Support full DisplayPort link training.
Compliant with HDMI  specification up to 2.25 Gbps.
ESD protect: Human Body Mode at 8 kV, Machine Mode at 400V, and Charged Device Mode at 2 kV.
PC: VGA, SVGA, XGA, SXGA, and UXGA.
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p.
Standby mode current: 64uA.
LED indicator: Cable link status.
W/Latch, W/LED, Adapter Type, Plastic Cover Ass'y, Width=21mm.
Gold plated shell of connectors
FCC, CE, RoHS Compliant.

DisplayPort is the newest digital display interface standard introduced by VESA. The format supports both digital video and audio.
The adapter is a simple solution for connecting your DisplayPort equipment using HDMI cables to your exisiting HDMI equipment. This simple adapter is all you need to convert from one format to the other.
Note: In order for this adapter to function properly, you must have a DisplayPort source device capable of producing and passing out an HMDI signal through the DisplayPort jack.

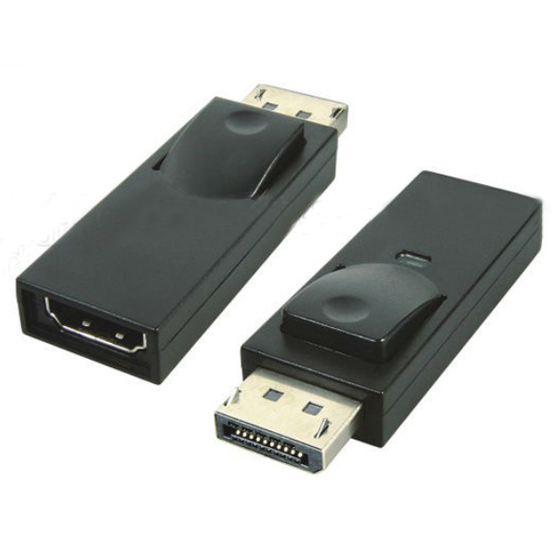

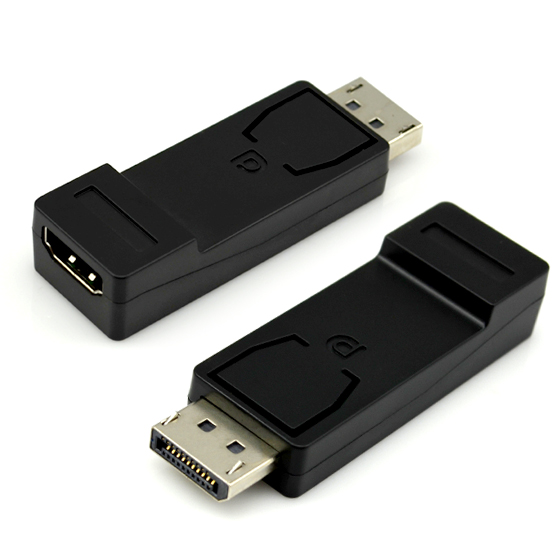

End 1: DisplayPort (DP) Male
End 2: HDMI Female
Enable high quality optional digital audio transmissions
Embedded clock architecture to reduce electromagnetic interference (EMI)
Supports greater than QXGA (2048 x 1536) resolution at 24-bit color depths
Supports hot plug and un-plug detection
Supports 1080p Resolution
Supports up to 10.8 Gbps
Color: Black

Compliant with DisplayPort Interoperability specification V1.1a.
Support full DisplayPort link training.
Compliant with DVI 1.1 specification up to 1.65 Gbps.
ESD protect: Human Body Mode at 8 kV, Machine Mode at 400V, and Charged Device Mode at 2 kV.
PC: VGA, SVGA, XGA, SXGA, and UXGA.
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p.
Standby mode current: 64uA.
LED indicator: Cable link status.
W/Latch, W/LED, Adapter Type, Plastic Cover Ass'y, Width=21mm.
Gold plated shell of connectors
FCC, CE, RoHS Compliant.

DisplayPort 1.1a compliant receiver offering 1.62 and 2.7Gbps over 4 lanes.
Support full DisplayPort link training.
Video resolution up 1920 X 1200 X 60Hz.
ESD protect: Human Body Mode at 8 kV, Machine Mode at 400 V and Charged Device Mode at 2 kV.
PC: VGA, XGA, SVGA, SXGA, UXGA and WUXGA.
W/Latch, W/LED, Adapter Type, Plastic Cover Ass'y.
Gold plated shell of connectors
FCC, CE, RoHS Compliant.
